Key Features

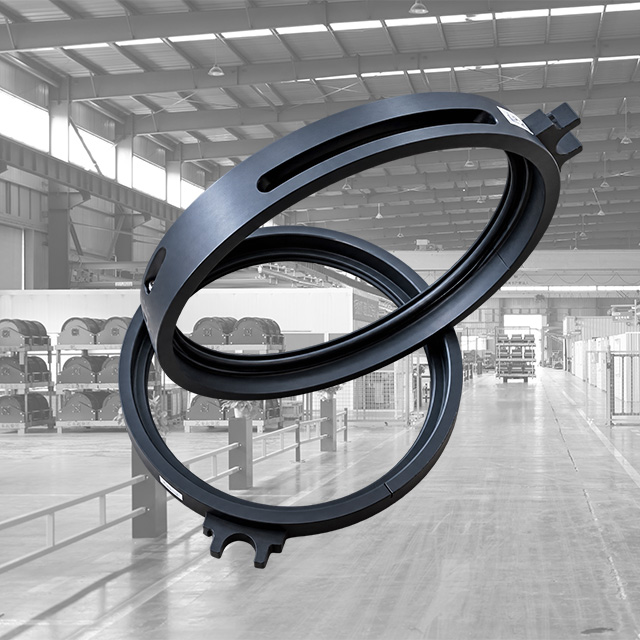

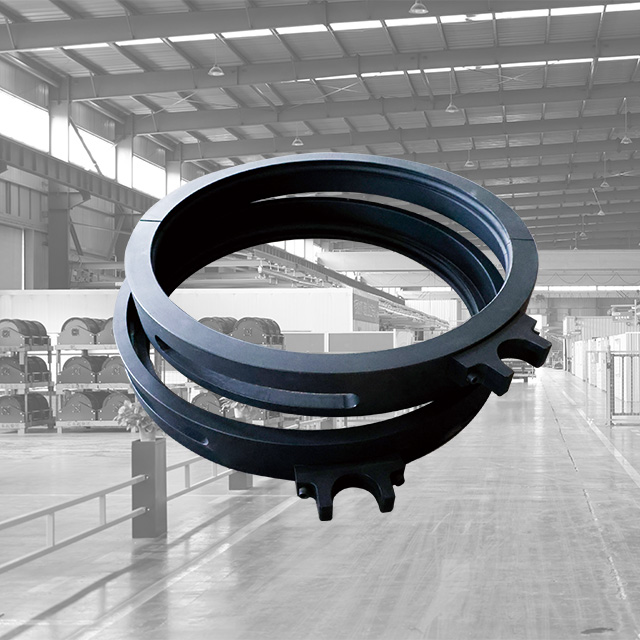

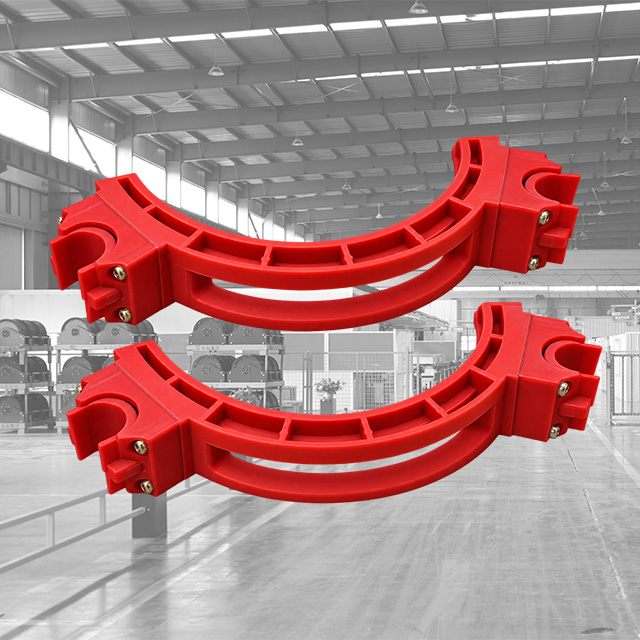

1. Self-Lubricating & Rope-Friendly
Made from high-strength MC Nylon, the rope guide offers excellent self-lubrication, elasticity, and wear resistance, reducing friction and extending wire rope service life.
2. Durable & Corrosion-Resistant
MC Nylon provides excellent strength, wear and corrosion resistance. It is rust-free and suitable for humid and demanding working environments.
3. Easy Installation & Maintenance
The split-type design allows quick assembly, disassembly, and replacement, significantly reducing maintenance time and equipment downtime.
4. Excellent Angular Compensation
The 10° beveled rope outlet accommodates up to 3° of angular pull, providing greater flexibility and reliable operation.
5. Wide Application
Suitable for electric, explosion-proof, and special-duty hoists, meeting the requirements of various industrial applications.
Technical Parameters
Product Name | Specification Model | Drum Diameter (mm) | Wire Rope Diameter (mm) |
|---|---|---|---|
Rope Guide | 2307 (Half-type) | 232 | 7 |
Rope Guide | 2309 (Half-type) | 232 | 9 |
Rope Guide | 2411 (Half-type) | 245 | 11 |
Rope Guide | 3315 (Half-type) | 328 | 15 |
Rope Guide | 2307 | 232 | 9 |
Rope Guide | 2309 | 232 | 9 |
Rope Guide | 2411 | 245 | 11 |
Rope Guide | 2711 | 273 | 11 |
Rope Guide | 3511 | 353 | 11 |
Rope Guide | 3515 | 353 | 15 |
Rope Guide | 4011 | 405 | 11 |
Rope Guide | 4015 | 403 | 15 |
Rope Guide | 5115 | 510 | 15 |
Applications

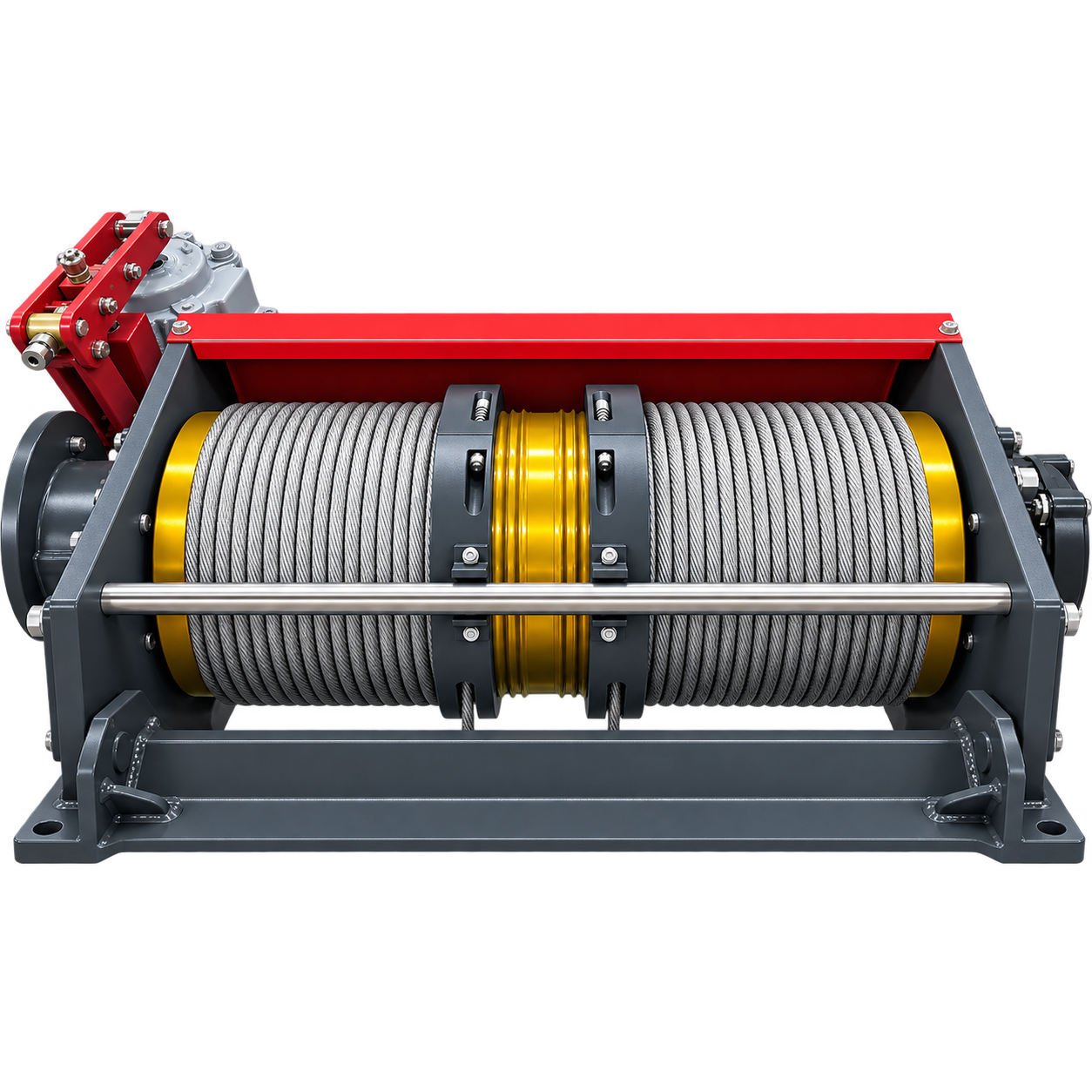

Electric Hoists — Ensures smooth and orderly rope winding.
Explosion-Proof & Metallurgical Hoists — Suitable for demanding working environments.
Workshops & Warehouses — Reduces rope wear and improves operational reliability.
Construction Sites — Prevents rope tangling and uneven winding.
Heavy-Duty Applications — Extends component life and reduces maintenance costs.

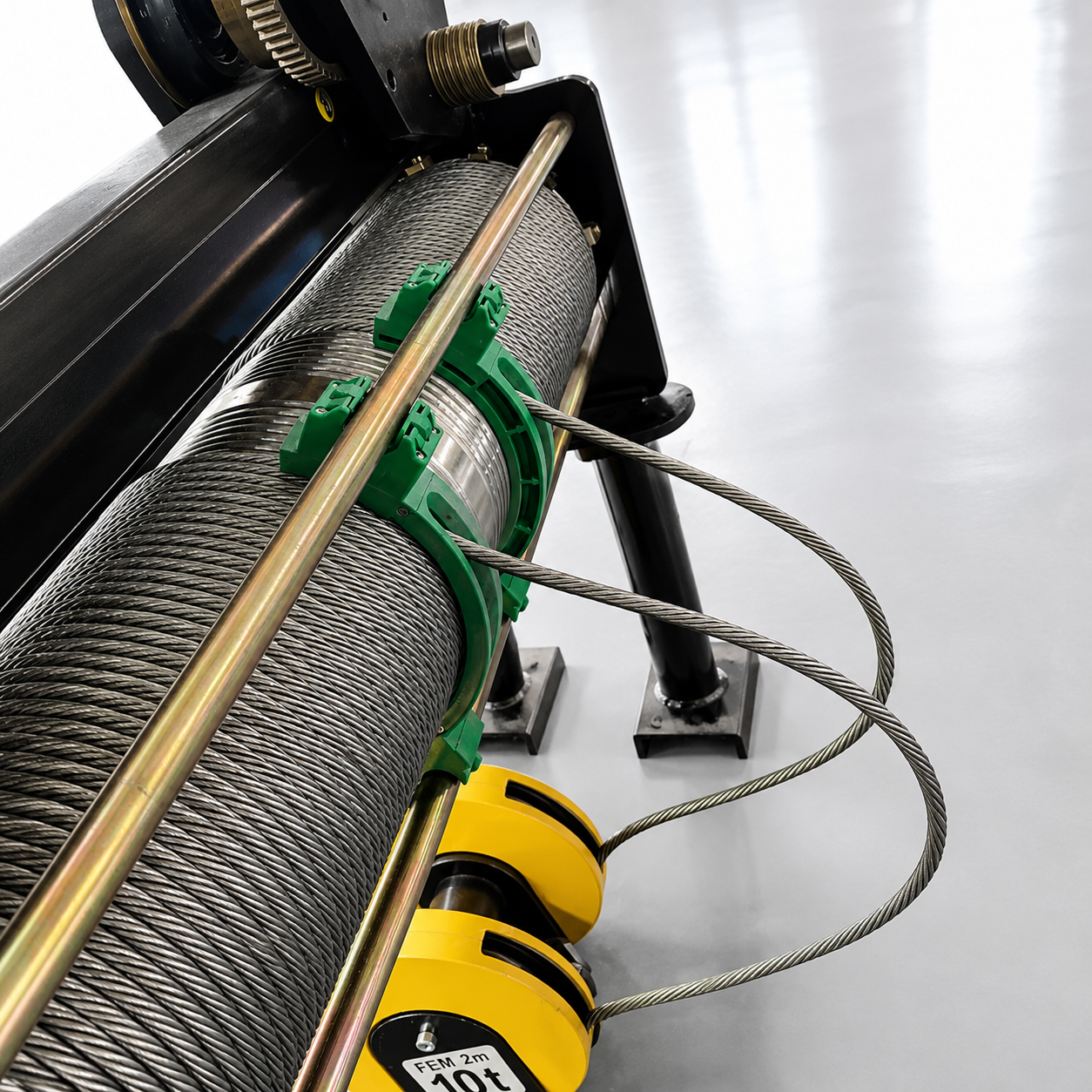

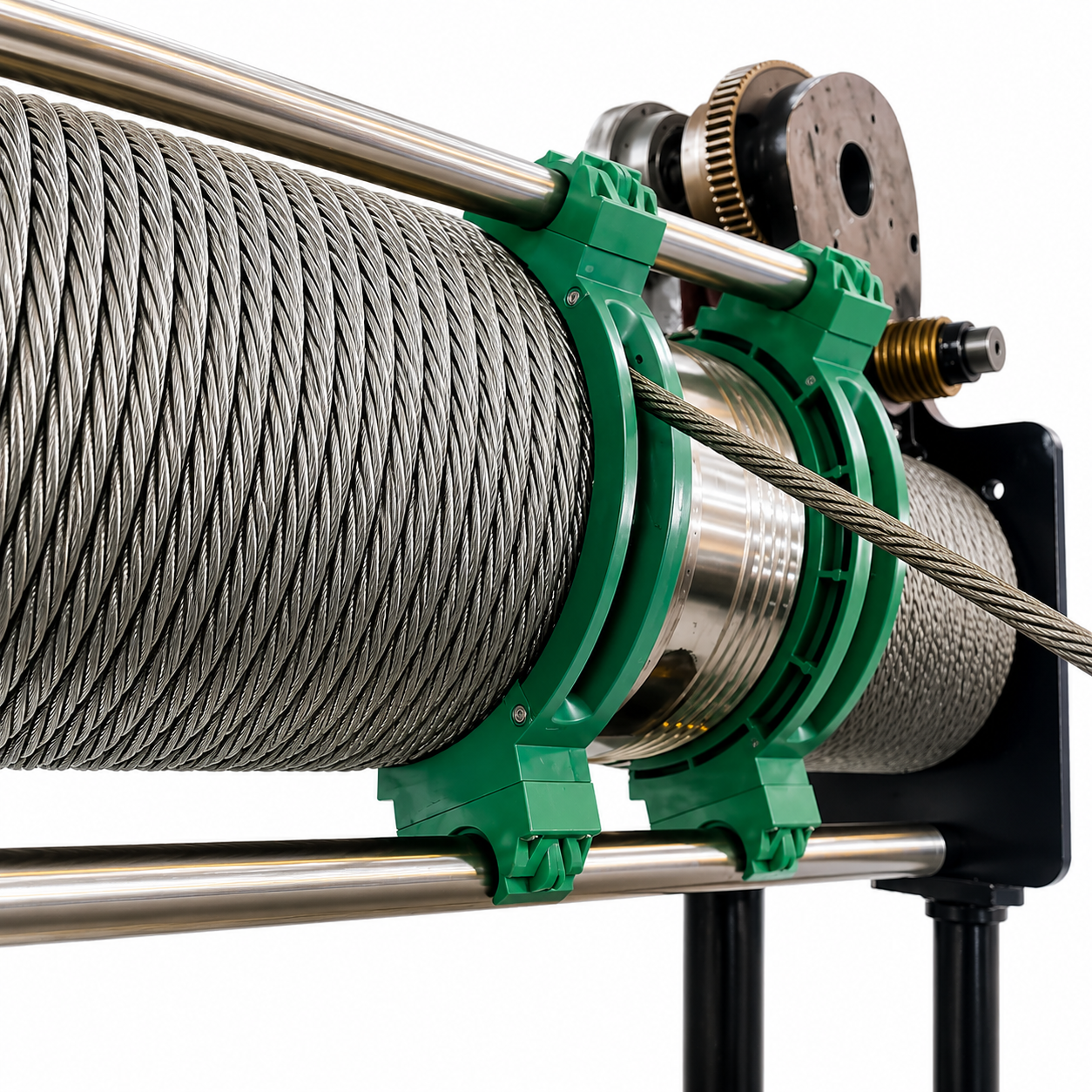

Installation Guide
Remove the fixing screws and open the split-type rope guide.
Insert the guide into the hoist drum and align it correctly.
Thread the wire rope through the guide and arrange the winding properly.
Secure the rope end with the drum wedge.
Fit the rope guide into the groove and tighten the fixing components.
Test the hoist and adjust the guide to ensure smooth winding and proper limit-switch operation.
FAQ
Q1: Why does the rope guide crack or break?
Excessive side loading, oblique pulling, or overloading may damage the guide. Stop operation and replace it if cracks are found.
Q2: Why does the rope guide wear quickly?
Improper lubrication, damaged wire ropes, or harsh working conditions can accelerate wear. Inspect and replace the guide when necessary.
Q3: Why is the wire rope winding unevenly?
Check the alignment between the rope guide and drum, as well as the installation gap. Readjust if necessary.
Q4: Why does abnormal noise or vibration occur?
Loose fasteners, insufficient lubrication, or component damage may cause abnormal noise. Check and tighten all fixing components and inspect the guide.
