Integrated Planetary Drive · I-Beam Compatible · Centered Hook Travel · Smooth & Reliable Lifting

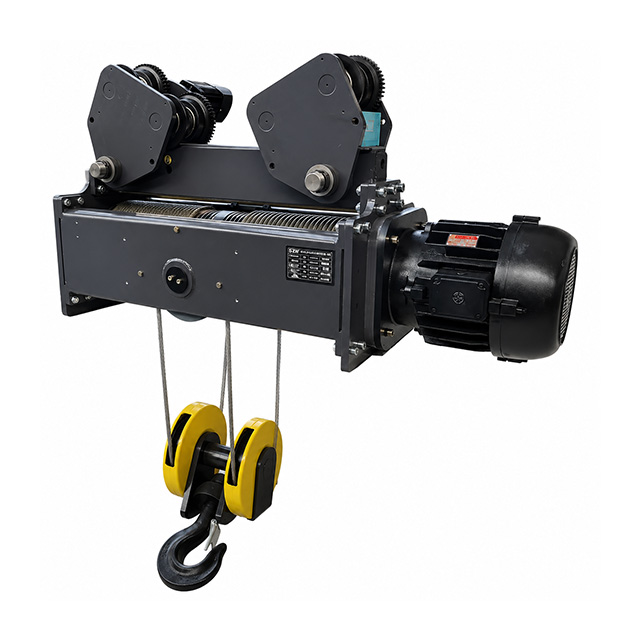

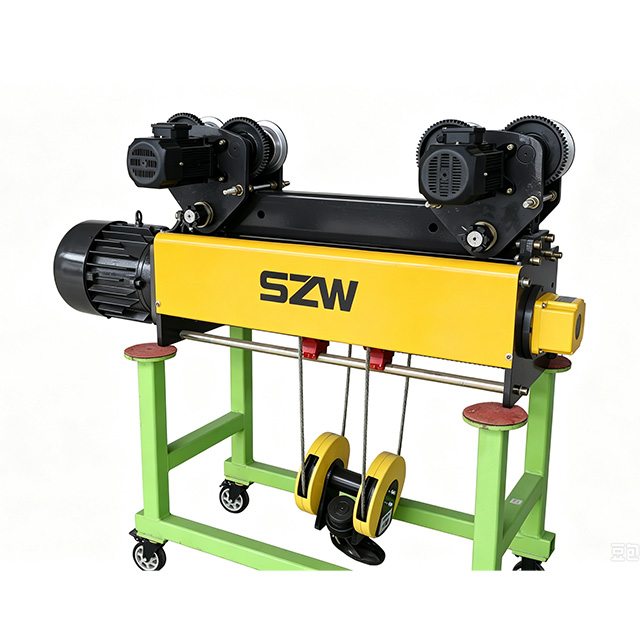

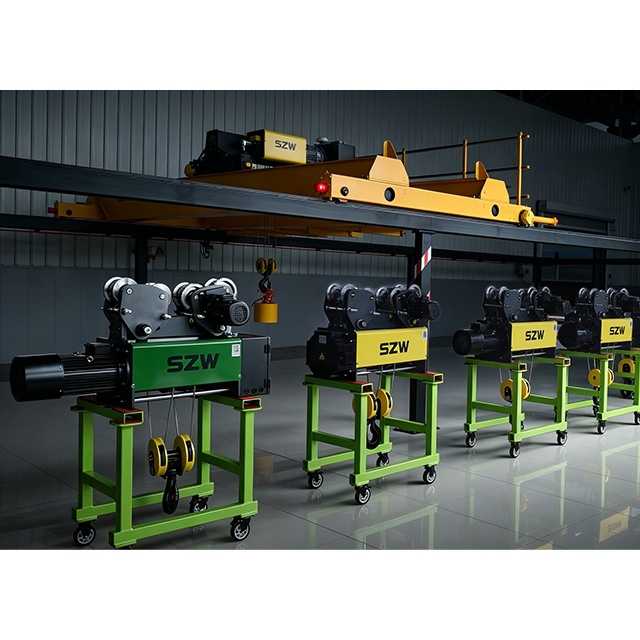

The ASX Planetary Electric Wire Rope Hoist is designed for conventional single-girder cranes and I-beam crane systems, combining proven crane compatibility with a compact, high-performance planetary transmission.
At the heart of the ASX is a hardened-gear planetary reducer integrated inside the rope drum. Power from the hoisting motor is transmitted to the planetary gearbox through a flexible coupling, creating a compact and efficient drivetrain with high torque capacity and smooth power transmission.
The modular hoist construction, I-beam travelling trolley and centered hook arrangement make the ASX an ideal solution for new conventional crane installations as well as modernization and replacement projects.
Lifting Capacity: 3.2–20 t · Working Class: M4 · Lifting Height: up to 18 m
The ASX hoist consists of independent functional modules, including the hoisting motor, planetary gearbox, rope drum assembly, flexible coupling, rope guide, hook block, electric travelling trolley, travel drive and electrical control system.
The modular arrangement provides convenient access to individual components, simplifying inspection, adjustment, maintenance and replacement while helping reduce service downtime.
A hardened-gear planetary reducer is integrated directly inside the rope drum, utilizing the internal drum space to create a highly compact hoisting drivetrain.
Multiple planet gears share the transmitted load, providing high torque capacity, accurate transmission and reliable performance within a compact structure. Hardened gear surfaces provide excellent wear resistance and contribute to extended service life.
The output torque of the hoisting motor is transmitted to the planetary reducer through a flexible coupling.
The coupling helps absorb shock and compensate for minor alignment deviations, reducing impact on the transmission system and contributing to smoother starting and reliable torque transfer.
Dual-speed motors and variable-frequency brake motors are available to suit different operating requirements.
VFD configurations provide smooth acceleration and deceleration, improved low-speed control and accurate load positioning while reducing mechanical shock during frequent lifting operations.
The ASX hoisting mechanism is designed to maintain the hook centerline in a consistent position during lifting and lowering.
This centered lifting arrangement minimizes lateral hook displacement and provides more predictable vertical load movement, which is particularly beneficial for accurate load handling and positioning.
The travelling trolley is specifically designed for conventional I-beam crane girders, making the ASX suitable for traditional single-girder overhead cranes.
The configuration is also well suited to modernization projects where the existing crane girder structure is retained while the hoisting equipment is upgraded.
The ASX uses a highly integrated power transmission arrangement:
Hoisting Motor → Flexible Coupling → Planetary Gear Reducer → Rope Drum → Wire Rope → Hook Block
Unlike conventional configurations that require a separate external reduction gearbox, the ASX planetary reducer is positioned inside the rope drum.
This arrangement makes effective use of the available internal space and reduces the external footprint of the transmission system, while the planetary gear architecture provides high torque density through multiple-gear load sharing.
Technical Parameters
Item | Unit | Specification Parameters | ||||
|---|---|---|---|---|---|---|
Model | — | ASx | ASx | ASx | ASx | ASx |
Work Class | — | M4 | M4 | M4 | M4 | M4 |
Rated Lifting Capacity | t | 3.2 | 5 | 10 | 16 | 20 |
Lifting Height | m | 6/9/12/15/18 | 6/9/12/15/18 | 6/9/12/15/18 | 6/9/12/15/18 | 6/9/12/15/18 |
Hoisting Speed | m/min | 0.5-5/0.8-8 | 0.5-5/0.8-8 | 0.5-5/0.7-7 | 0.35-3.5/0.5-5 | 0.35-3.5/0.5-5 |
Travel Speed | m/min | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 |
Power Supply | 3-Phase A.C. 380V, 50Hz / Customized for Project Requirements | |||||
Note: Lifting height, lifting and travelling speeds, power supply, control system and other technical parameters can be customized according to project requirements and operating conditions.
Designed specifically for conventional single-girder cranes using I-beam structures, providing reliable lifting and cross-travel performance for everyday industrial material handling.
An effective solution for upgrading existing conventional crane systems. Where the existing crane structure remains suitable for service, the ASX can provide a modern planetary hoisting solution without changing the fundamental crane configuration.
Suitable for machinery manufacturing, equipment assembly, component handling, fabrication workshops and production facilities requiring frequent lifting operations.
Ideal for warehouses, maintenance facilities, industrial storage areas and general material-handling applications requiring reliable overhead lifting.
Machinery Manufacturing · Equipment Assembly · Metal Fabrication · Maintenance Workshops · Warehousing · Production Facilities · Conventional Overhead Cranes · Crane Modernization
Operation & Maintenance
1. Safe Operation
Never exceed the rated lifting capacity. The hoist should be positioned vertically above the load before lifting. Side pulling and diagonal lifting must be avoided. Personnel must never stand or work beneath a suspended load.
Before operation, inspect the braking system, wire rope, hook, rope guide and limit devices. Confirm that all safety devices operate correctly. Limit switches are safety devices and should not be routinely used as normal operating stops.
Maintain appropriate lubrication of the gearbox, bearings and wire rope in accordance with the maintenance schedule. Never manually lubricate moving wire rope. Disconnect the main power supply before maintenance and do not leave loads suspended for extended periods.
If abnormal noise, vibration, braking performance or other irregular operation occurs, stop the equipment and isolate the power supply. Inspection and maintenance should be carried out by qualified personnel with the hoist unloaded and safely secured.
FAQ
Possible causes include activation of the lifting limit switch, motor thermal protection, electrical protection or other control-system conditions. Stop operation and identify the cause before restarting. If thermal protection has activated after extended operation, allow the motor to cool and inspect the operating conditions before returning the hoist to service.
Stop the hoist and isolate the power supply. Abnormal vibration or noise may be associated with lubrication, bearings, gears, coupling alignment or other mechanical components. The equipment should be inspected by qualified service personnel before further operation.
Stop operation immediately and safely lower or secure the load where possible. Load slipping can indicate a problem with the braking system or other hoisting components. The brake and transmission system must be inspected and corrected by qualified personnel before the hoist is returned to service.
Wire rope should be inspected regularly for broken wires, excessive wear, corrosion, kinking, deformation and other damage. Replacement criteria should follow the applicable crane wire-rope inspection standard and the manufacturer's maintenance requirements.
Before commissioning, verify that the incoming power supply matches the equipment nameplate and project electrical specifications. Insulation, grounding, phase sequence, control circuits and protective devices should be inspected and tested by qualified electrical personnel in accordance with applicable standards and commissioning procedures.
The ASX brings modern planetary transmission technology to conventional I-beam crane applications.
Its combination of an internally mounted planetary gearbox, flexible coupling drive, modular construction, centered hook travel and I-beam-compatible trolley provides a compact and reliable solution for both new crane installations and existing crane modernization projects.
Integrated Planetary Drive
Gearbox installed inside the rope drum.
I-Beam Compatible
Designed specifically for conventional crane structures.
Centered Hook Travel
Consistent hook centerline during lifting and lowering.
Flexible Speed Control
Dual-speed and VFD configurations available.
Modular & Serviceable
Independent functional modules simplify inspection and maintenance.
